General \

Device Type

Switch - 48 ports - L3 - managed

Enclosure Type

Desktop rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP / 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE+

PoE Budget

740 W

Performance

Switching capacity

MAC Address Table Size

16000 entries

Jumbo Frame Support

9216 bytes

Routing Protocol

OSPF RIP-1 RIP-2 IGMPv2 IGMP OSPFv2 PIM-SM static IP routing PIM-DM IGMPv3 PIM-SSM MLDv2 MLD CIDR

Remote Management Protocol

SNMP 1 RMON 1 RMON 2 SNMP RMON 3 RMON 9 Telnet SNMP 3 SNMP 2c HTTP HTTPS TFTP SSH SSH-2 CLI NTP

Encryption Algorithm

MD5 TLS PEAP TTLS

Authentication Method

RADIUS TACACS+ Secure Shell v.2 (SSH2) Extensible Authentication Protocol (EAP)

Processor

1 x ARM

RAM

2 GB

Flash Memory

2 GB

Expansion / Connectivity

Interfaces

48 x 1000Base-T RJ-45 PoE+ - 30 WÂ 4 x 10Gbit LAN SFP+ uplinkÂ 1 x mini-USB management

Power

Power Device

Internal power supply

Power Consumption Operational

100 Watt

Dimensions & Weight

Width

17.4 in

Depth

12.2 in

Height

1.8 in

Weight

11.07 lbs

Environmental Parameters

Min Operating Temperature

32 Â°F

Max Operating Temperature

113 Â°F

Humidity Range Operating

10 - 85% (non-condensing)

Min Storage Temperature

-40 Â°F

Max Storage Temperature

158 Â°F

Humidity Range Storage

0 - 95% (non-condensing)

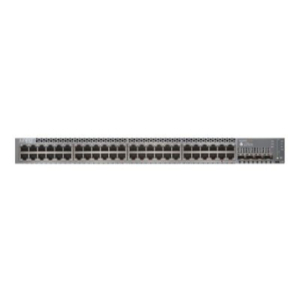

The EX2300 Ethernet switch delivers a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. With a small, 1U footprint, the EX2300 is perfect for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
